Databases are crucial for organizing and preserving company data, and databases must be appropriately maintained and designed effectively to require minor maintenance. The database model design process comprises the architecture, programming, installation, and upkeep stages.
Do you wish to create a database diagram? Diagrams are the most efficient tool for designing a database model. Creating complicated data structures using a two-phase or no-script approach can be made simpler by employing one of the many database diagram tools.
In this article, we'll discuss the database design diagram, the importance of data modeling, the database design process, and its purpose, and explain how to create an effective database
design.
What is a database design diagram?
Using the principal and foreign keys to create connections among data structures. Database diagrams graphically depict the database schemas and the relationships among database objects. A database diagram can be made for a data source and chart. The created database diagrams can be saved in UML and PNG formats. Internally, the UML format was designed especially for PhpStorm, and other items do not accept it. Think about utilizing PNG if you wish to distribute the prepared database diagrams.
A series of procedures known as an action plan was employed to retrieve data stored in a database model. You can also create an action plan. There are two distinct types of database designs that PhpStorm supports.
Explain Plan: The outcome is displayed in a combined graph and table layout on a separate Plan tab. Choose the Show Visualization option to create a database diagram showing the query process.
Explain Plan (Raw): A table displaying the outcome is revealed.
A list of the material you want to include and the intended purposes for the database model should be the foundation of any effective database diagram. What is necessary for me to know? rather than "What columns or rows should I be looking at in this process?" All of this may be performed in your native language without using SQL. Consider this seriously since if you find later that you missed anything, you typically have to restart. It usually requires a lot of work to add things to your database model.
Why is data modeling important?
Any sophisticated software development process must begin with data modeling. Data models aid programmers in comprehending the domain and planning their job correctly.
Greater quality
Improper coding is a primary reason for failure in software development projects, which fail roughly 70% of the time on average. You should think about data before designing an app, just like architects do before building construction. A database design aids in troubleshooting, allowing you to weigh your options and select the optimal strategy.
Cost savings
Data models allow you to create applications at a lower price. Database models take up less than 5-10% of a cost plan and can reduce the 65-75 percent of price limit that is generally dedicated to coding. Data modeling detects mistakes and omissions slightly earlier, making them simple to correct, and this is preferable to remedying errors after the apps have been documented.
Improved documentation
Database models provide a foundation for long-term upkeep by documenting key ideas and technical language. Despite personnel changes, the material will still be helpful to you.
Greater transparency
Data models give scope determination a point of focus. The database model offers anything concrete to enable financial backers and programmers to reach a consensus on the specific features of the program that will be included and excluded. Enterprise users can access what programmers create to match what they know. Database models foster consumer and programmer agreement.
Data models also encourage jargon and linguistic consensus. The paradigm emphasizes the selected phrases to facilitate their incorporation into application components. The program that results is simpler to keep and expand.
Great Efficiency
A well-built database model often operates quickly, frequently more rapidly than anticipated. The principles in data models need to be clear and cohesive to work at their best. After that, the database model must be converted into a database design using the correct principles.
It is more often than not a database model misuse than a fault with the database application (SQL Server). When that issue is resolved, the execution is excellent. A database can be understood by modeling, allowing you to optimize it for quick efficiency.
Decrease in application errors
A database model helps people clarify ideas and eliminate ambiguity. So, a strong direction is established before app development ever begins. Although they are less likely to do so, programmers can still make minute mistakes as they build program code.
The design process
The following steps lead to the design process:
- Specify the database model's goals
Determine the goals you're looking to achieve since this aids in getting you ready for the subsequent actions. - Locate and compile the necessary data
Assemble all the data you can store in the database model. This data can be an order id or product name. - Put the data in table form
Sort the data into broad categories, such as orders or products. Then, link the table to each topic. - Put information in the form of columns
Choose the data you wish to include in each table. Each value is converted into a field and shown as a table column. For instance, the Worker's table could have fields for the date of hire and surname. - Name the primary keys
Select the primary key for each table. The column used to define each row is known as the primary key. Order number D or product number are two primary keys, and a value should always be associated with a primary key.
A column's value cannot be utilized as an element in a primary key if it can be unclaimed or unfamiliar on some occasion. Always select a primary key whose value will not shift. If the primary fundamental changes, the alteration must be reflected wherever the key is used. - Establish the table's connections
Consider each table and decide the relationships between the information in each table. If more information is needed to understand the connections, add columns to the same tables or make new ones. - Develop your concept
Check for mistakes in your layout. Make the database tables, then add some example data records to them. Check your statistics to see if you can acquire the outcomes you need. Design modifications should be made when necessary. - Use the normalizing guidelines
Check your database tables' design using the data normalization rules to check if it is proper. The tables should be modified as necessary. One of its forms forbids you from saving any derived data from the table.
Requirements analysis: identifying the purpose of the database
The main objective of Requirements Analysis is to collect every piece of info necessary to create a database model that fulfills a company's data needs. The requirements analysis has the following objectives:
- To ascertain the database's information needs in terms of primitive objects
- To categorize and define the facts about these entities
- Identifying and classifying the relations between the entities
- To demonstrate the kinds of payments that will be performed on the database model
- To recognize the guidelines that regulate reliability
These objectives can be achieved through the completion of a set of related activities:
- Look over the current database
- Consumer interviews should be conducted
- Make a data flow chart (if needed)
- Ascertain user opinions
- All observations should be documented
The software designer collaborates with a company's end users to uniquely identify the database's information needs. There are various methods for gathering the data required for the requirements analysis:
Examine existing documents
Defined roles and findings, written rules, job requirements, and histories are examples of such documents. Paper documentation is an excellent method to become acquainted with the company or action you are modeling.
Interviews of end users
These may include both personal and group sessions. Try to limit group meetings to at most five persons. Try to gather everybody who performs the same role in one session. Take notes from the interviews using a whiteboard or projectors.
Review of already-existing automated systems
Review the documentation and framework design guidelines if the company has an automation process. Usually, requirements analysis and data modeling happen simultaneously. Data objects are recognized and categorized as entities, properties, or relationships as data is gathered. Then, they are given names and described using words that the end users are conversant with.
Entity relationship diagrams are then used to represent and analyze the objects. The designer and end-users can assess the entity relationship database diagrams to ensure their accuracy and thoroughness. If the database model is incorrect, it is revised, which sometimes necessitates collecting extra data. The analysis and editing process is repeated until the database model is declared accurate.
What are Database schemas and database instances?
A database management system allows database schemas and instances to interact. Every database instance is ensured by the database management system to adhere to the restrictions set out in the database schema by the database model designers. A database instance is a copy of a database model that was taken at a specific moment. At the same time, database schemas are typically static.
Database structure
The database model demonstrates the following structural attributes:
- Several tables are present in a database structure
- Every table includes information about a single topic
- Data detailing a table's case is contained in fields
- Entries are specific examples of a table's subject
- An explicit primary key area identifies each entry in the tables of the database structure.
Example
The following sample table explains how a database table is structured.
| Customer ID | First Name | Last Name | Purchased Date |
| 26710 | Andrew | Jobel | 14-10-2022 |
| 26711 | Anthony | Mitchell | 15-10-2022 |
| 26712 | Jimi | Neesham | 15-10-2022 |
| 26713 | Corey | Anderson | 16-10-2022 |
The customer table consists of
- Customer ID
- First Name
- Last Name
- Purchased Date
The following aspects can be found in the table:
- The headline reveals the table's particular topic: Customer
- Surname, forename, and purchase date are the fields that describe customers.
- Customer ID is the table's primary key that identifies a specific account.

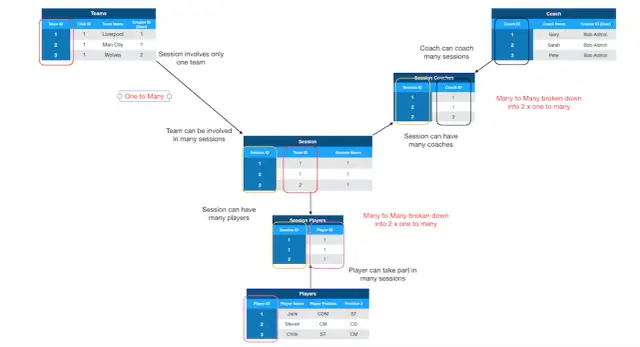

Creating relationships
You are now prepared to investigate the relationships between the tables you created from your database. The number of entries that interact among two linked tables is their cardinality. By determining the cardinality, you may ensure that the data has been correctly split into tables.
Though relationships between entities are theoretically possible, they often fall into one of three categories:
- One-to-one relationship
- One-to-many relationship
- Many-to-many relationship
One-on-one relationships are uncommon in the financial world, while relationships between one and many people are prevalent. Many-to-many relationships are not enabled in database diagrams and must be turned into one-to-many relationships. Database diagram designs are almost thoroughly composed of tables with one-to-many relationships.
One-to-one
When zero or one model of entity A may be connected with zero or one model of entity B, and when zero or one model of entity B can be linked with zero or one model of entity A, there is a one-to-one (1:1) relationship in the database diagram design. For example, a man is allowed to marry only one woman in a traditional American wedding; a woman is also allowed to marry only one man.
One-to-many
A one-to-many (1:N) relationship occurs in database diagram design when there are zero, one, or several cases of entity A for each example of entity B. Still, there are zero or one case of entity A for each point of entity B. For instance, a kid has one father; a father can have multiple biological children.
Many-to-many
A many-to-many (M: N) relationship exists in relational database diagram design when there are zero, one, or several cases of entity A for one point of entity B and zero, one, or several cases of entity A for one case of entity B. For instance, a student may enroll in multiple classes; a class may have several students enrolled.
SQL and UML
SQL is a standard programming language known as structured query language used for navigating and modifying databases. You can use SQL to navigate and control databases. In 1986, the American National Standards Institute and the International Organization of Standardization recognized SQL as a standard.
SQL is capable of running queries against databases. With SQL, developers can obtain information from a database. Any database model can have data added using SQL.
You can put and delete information from a database model using SQL. Moreover, you can also create new tables and set permissions on them.
Another visual style for defining large systems written in an object-oriented paradigm is the Unified Modeling Language (UML). Today, UML is less widely utilized than it was previously. These days, it's frequently utilized in school contexts and correspondence between software developers and their customers.
How do you create a database diagram?
- Navigate the object explorer and then right-click the Database Diagrams directory
- The shortcut menu will allow you to create a new database diagram
- From the Tables list, choose the necessary tables, then click add
Top 5 database diagram design tools
Database Schema
Database Schema is an administration tool for programmers of SQL, MongoDB, NoSQL, and Cloud systems. With its dynamic design capability, you may create database models using diagrams.
You can drag and drop objects, including tables and foreign keys, onto the surface. Reference to the Primary Key of another table is known as a foreign key. Only elements that are present in the Primary Key column that they connect to are permitted in foreign key columns. Foreign keys are represented as FK.
With a drag-and-drop tool, you can create database models without using any code. Additionally, you can design several designs for various components of the database schema. When the database layout is complete, you can download it in HTML5 or PDF format.
Features
- It allows you to create and maintain database models
- Employs MongoDB, NoSQL, and SQL
- collective capabilities
Pros:
- Functions with regional and web-based data
- Provides built-in teamwork tools
- Allows for debugging schemas
Cons
- It needs a longer trial period
Smart draw
You can use the cloud-based diagramming application SmartDraw to construct your database diagrams dynamically. To create the database diagram, all you have to do is import binary data like a CSV file. The database model can be edited using drag-and-drop after it has been built.
Features
- A web-based system
- Drag-and-drop capability
- Generates CSV files
Pros
- Easy-to-use diagramming application for database
- Available from any browser
- Straightforward to produce classy data diagrams
Cons
- It doesn't provide any functionality tailored to databases
DB Designer
DB Designer is a web-based database diagram tool. It comes with forward and reversed engineering capabilities. It can switch and dispatch engineer databases. You can send data to MySQL, PostgreSQL, MS SQL, and SQLite or receive data from MySQL, PostgreSQL, and Oracle. SQL dump files are also stored in MS SQL. Databases are exportable to PDF and PNG file types.
Features
- This database diagram tool supports MySQL, SQL Server, Oracle, and PostgreSQL
- Database import and export
Pros
- Supports a wide range of SQL database forms
- It is possible to export images or documents
- Aids you to access data and monitoring
Cons
- The infographics are basic and best suited to relatively small databases
SQL DBM
You may construct and integrate databases using the SQL diagramming, and database modeling tool known as SQL DBM. Snowflake, MySQL, PostgreSQL, and SQL are all functional with SQL DBM. Database entities like columns, modules, and connections can be created using the user-friendly GUI.
Features
- It offers a free version
- Functional with SQL Server, PostgreSQL, MySQL, Snowflake
Pros
- Developed massive databases and businesses
- Supports a variety of databases, such as MySQL, Redshift, and PostgreSQL
- Offers a sophisticated UI that makes use of color to maintain organization
AppMaster database designer tool

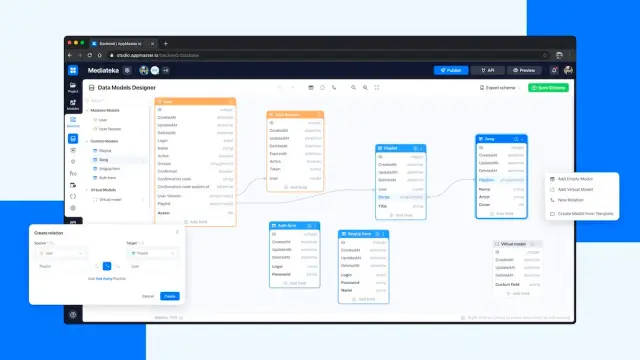

Do you ever hope someone will create a tool to use whatever database systems you desire? AppMaster database designer makes it feasible. This is the best no-code tool for designing PostgreSQL databases. It assists you with a variety of tasks, including:
- Create any intricacy of schema diagrams
- Create any database models without writing any SQL scripts
- Quickly create and modify a database design
- Evaluate and add primary keys model relationships
With AppMaster database designer, you can automatically create your database and also automate the database modification procedure and improve everyone's quality of life and safety. Although if your manual method has been effective for ages, somebody is likely suffering from anxiety or spending more time debugging as a result. Make it disappear with automation.
Final words
Try using the AppMaster database design tool when you're about to create your database model. Businesses must examine the business data they have stored across various data sources, and data must be put into the data warehouse to gain a thorough understanding of the data. AppMaster is a no-code data pipeline solution to transfer your data to the appropriate data warehouse. Without creating a single line of code, it simplifies the process of converting and transmitting data to a location. Begin your free trial right away!
