Data Models in DBMS

Data Models in DBMS

A data model is a structural representation of the data elements, their relationships, and constraints within a database management system (DBMS). It serves as a blueprint for designing and implementing database systems, allowing software developers and database administrators to organize, store, and manage data efficiently.

Data models streamline decision-making and communication between team members, serving as a visual and conceptual tool during development. At its core, a data model seeks to define the data structure, including its organization and relationships. Furthermore, it provides a means to categorize and represent the stored data's requirements and maintain data integrity, giving way to more effective and consistent data manipulation and retrieval.

The Importance of Data Models in DBMS

Data models play a crucial role in database management systems, as they:

  1. Guide database design: Data models aid in developing logical and physical database designs by outlining how data will be organized, thereby establishing entities, attributes, and relationships.
  2. Ensure data consistency: By defining data structures and conventions, data models promote uniformity across database systems, thus maintaining data consistency.
  3. Enable efficient data storage and retrieval: A well-developed data model allows for optimum data storage, faster queries, and efficient access to the required information.
  4. Enhance communication: Data models serve as a visual and conceptual reference that helps bridge communication gaps between developers, DBAs, project stakeholders, and end-users. They provide a comprehensive understanding of the intended database structure and usage.
  5. Facilitate data management: Data models are essential in managing data, as they assist in outlining the rules, constraints, and relationships that govern the data and help maintain data quality and integrity.

Types of Data Models

Several types of data models have been developed over the years. Each type has its own set of advantages and drawbacks, and their suitability depends on the specific use case. The main types of data models are:

  1. Hierarchy Data Model
  2. Network Data Model
  3. Relational Data Model
  4. Entity-Relationship Model
  5. Object-Oriented Data Model

Understanding the features and limitations of each data model is essential for selecting the most appropriate model for a particular database system. Let's take a closer look at each of these types.

Hierarchy Data Model

The hierarchy data model is one of the earliest database models, developed in the 1960s. It represents data using tree-like structures, with each node containing one parent and multiple child nodes. This model is well-suited for one-to-many relationships (1:N), where a parent entity is related to multiple child entities.

Its simplicity and ease of implementation characterizes the hierarchical model. Still, it presents some limitations when dealing with complex relationships and data redundancies. Let's take a closer look at the hierarchical model's key features, advantages, and disadvantages.

Key Features

  • Tree-like structure.
  • One parent node can have multiple child nodes, but a child node can have only one parent node.
  • Parent-child relationships are represented through parent pointers or nested sets.
  • Optimized for navigating from parent to child nodes, not vice versa.
  • Best suited for one-to-many relationships.

Advantages

  • Simple and easy to understand.
  • Efficient for data retrieval and storage.
  • Well-suited for hierarchical data, such as organizational charts, file systems, and taxonomies.
  • Data integrity is maintained through enforced parent-child relationships.

Disadvantages

  • Limited flexibility for handling complex relationships, such as many-to-many relationships (M:N).
  • Potential for data redundancy, as child nodes may need to store repeating information about their parent node.
  • Not optimized for accessing data through child-to-parent navigation or searching non-hierarchical data.
  • Updating or deleting data can be challenging due to the rigid hierarchical structure.

Network Data Model

The network data model was developed in the late 1960s as an evolution of the hierarchical model. It extends the hierarchical model by allowing a node to have multiple parent and child nodes. This flexibility enables the network data model to represent many-to-many relationships (M:N), making it suitable for more complex data structures.

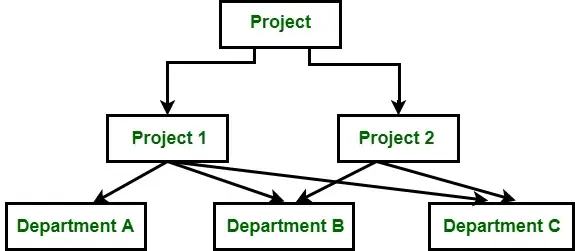

Network Data Model

Image Source: GeeksforGeeks

The increased modeling capability and flexibility come at some cost in complexity and performance. Nevertheless, the network model has its merits and is still used in specific applications. Let's take a closer look at the network model's features, advantages, and disadvantages.

Key Features

  • Graph-like structure.
  • Each node can have multiple parent and child nodes.
  • Relationships are represented using record pointers, which link directly between related records.
  • Ideal for many-to-many relationships.

Advantages

  • Flexible in representing complex relationships.
  • Eliminates data redundancy issues found in the hierarchical model.
  • Improved data integrity through the representation of multiple relationships.
  • Efficient for data retrieval when traversing relationships.

Disadvantages

  • Increased complexity compared to the hierarchical model.
  • Performance may be affected due to the complexity of relationships.
  • Updating, deleting, or inserting data can be more challenging due to the interconnected structure.
  • Requires a high level of expertise to design and maintain.
Try AppMaster no-code today!
Platform can build any web, mobile or backend application 10x faster and 3x cheaper
Start Free

Relational Data Model

The relational data model was introduced by Dr. Edgar F. Codd in 1970 as a way to simplify the representation of data relationships. The relational model represents data as relations, which are essentially tables with rows and columns. Each row, also known as a tuple, represents a single data record, while each column corresponds to an attribute of the data type.

The relational model allows for easy data manipulation and is widely used for its intuitive nature, flexibility, and support for structured query language (SQL). Among its numerous advantages, the relational model emphasizes data integrity and the ease of querying and modifying data using SQL. Let's explore the relational model's features, advantages, and disadvantages in more detail.

Key Features

  • Data is represented as tables, with rows and columns.
  • Rows represent individual data records (tuples), and columns represent data type attributes.
  • Primary and foreign keys represent relationships.
  • Data is manipulated using SQL, a powerful and highly standardized query language.

Advantages

  • Simple and intuitive representation of data.
  • Highly flexible for representing various types of relationships.
  • Provides strong data integrity through primary and foreign key constraints.
  • Easy data manipulation and retrieval with SQL.
  • Widely supported by various database management systems (DBMS).

Disadvantages

  • May lead to performance issues with large volumes of data or complex queries.
  • Not optimized for handling hierarchical or networked data structures.
  • Requires careful design of table structures and relationships to avoid data redundancy and maintain data integrity.

The hierarchical, network, and relational data models each have unique features, advantages, and limitations. The choice of data model depends on the specific requirements, complexity, and relationships of the managed data.

Entity-Relationship Model

The Entity-Relationship Model (ER Model) is a conceptual data model that represents data as entities and their relationships. The primary goal of the ER model is to provide a clear, straightforward, and graphical representation of the organization's data requirements by identifying its components, such as entities, attributes, and relationships.

In the ER model, an entity is a real-world object or concept that you want to represent in the database, like a person, an item, or an event. Each entity has a set of attributes that describe its characteristics or properties. For example, in a customer entity, attributes may include name, address, phone number, etc. The relationship in the ER model is the association between two or more entities. There are three types of relationships in ER model: one-to-one, one-to-many, and many-to-many. It's essential to model relationships correctly to ensure data integrity and efficient database use.

An Entity-Relationship Diagram (ERD) is a popular way to visualize the components and their relationships in the ER model. An ERD is a graphical representation that uses symbols to denote entities, attributes, and relationships. This diagram helps database designers to quickly understand the organization's data requirements and translate them into a suitable physical database design.

Object-Oriented Data Model

The Object-Oriented Data Model is a more recent data modeling advancement that combines database and programming concepts. In this model, data is represented as objects, and relationships are established through object-oriented programming (OOP) techniques such as inheritance, encapsulation, and polymorphism.

In the Object-Oriented Data Model, an object is an instance of a class, and a class is a blueprint that defines the structure and behavior of objects. Each object encapsulates its state through attributes and its behavior through methods. One of the most significant benefits of the Object-Oriented Data Model is its support for inheritance. Inheritance allows a class to inherit properties and methods from a parent class, promoting code reuse and modularity.

The Object-Oriented Data Model also supports encapsulation, which hides the internal implementation details of a class from its users. This feature is crucial for maintaining data integrity and providing a controlled interface to the class' functionality. Another OOP concept supported by the Object-Oriented Data Model is polymorphism. Polymorphism allows objects from different classes to be treated as objects from a common superclass, facilitating flexibility and extensibility in the database system. While the Object-Oriented Data Model offers multiple advantages, it requires a deeper understanding of object-oriented programming concepts and may demand more complex software tools for design and implementation.

Principles of Data Modeling

When working with any data model, it's crucial to follow certain principles to create an effective, meaningful, and maintainable model. Here are some critical principles of data modeling:

  1. Clarity: The data model should be clear and easy to understand. It should effectively communicate the structure and relationships among data elements to both technical and non-technical audiences.
  2. Simplicity: A good data model should avoid unnecessary complexity, making it easier to maintain and update. Keep the model as simple as possible while still adequately representing all the required data elements and relationships.
  3. Scalability: Data models should be designed with scalability in mind, as requirements may change over time. The data model should be flexible enough to accommodate future changes and growth without significant rework.
  4. Consistency: Consistency is crucial for maintaining data integrity and ensuring that the data model is reliable. Use consistent naming conventions, data types, and relationship definitions to improve the maintainability and clarity of the data model.
  5. Flexibility: A flexible data model can easily adapt to changing business requirements and technologies. Consider using design patterns and modular structures, allowing easy data model modification and extension.
Try AppMaster no-code today!
Platform can build any web, mobile or backend application 10x faster and 3x cheaper
Start Free

Adhering to these principles during the data modeling process can significantly improve the quality of the final model, making it more efficient, manageable, and maintainable. In addition to following these principles, leveraging powerful tools like the AppMaster Platform can greatly simplify and streamline the data modeling process.

With its visual data modeling tool and intuitive no-code solution, users can effortlessly design database schema, create business logic, and build web, mobile, and backend applications that suit their unique needs. With the right foundation and tools, you can create effective, scalable, and maintainable data models that cater to your organizational requirements.

Creating Data Models with the AppMaster Platform

Designing effective and maintainable data models is crucial to creating powerful, scalable software solutions. The AppMaster platform offers a powerful no-code solution for constructing data models and designing backend, web, and mobile applications.

With the visual data model creation tool provided by AppMaster, users can easily design database schema, specify relationships and constraints, and create business logic to interact with their data. The intuitive user interface allows for rapid and efficient data model development, with no programming experience required.

Visual Database Schema Designer

The visual database schema designer offered by AppMaster enables users to design their database schema by defining tables, setting relationships, and specifying constraints. This graphical interface simplifies the data modeling process by allowing users to visually arrange entities and their relationships, rather than writing complex SQL scripts. Users can define primary keys, foreign keys, and indexes using a user-friendly interface and can easily connect tables using drag-and-drop operations.

Business Process Designer

Alongside the visual schema designer, AppMaster provides a powerful Business Process (BP) Designer that allows users to create and manage the business logic of their applications. The BP Designer enables users to construct server-side logic for backend applications, while web and mobile applications use the Web BP and Mobile BP designers for creating business logic on a per-component basis.

Using the BP Designer is simple, thanks to the platform's drag-and-drop functionality. Users can rapidly build complex business processes by connecting various components such as actions, conditions, and loops. The platform also supports managing REST API and WSS endpoints, helping users expose their data models to other systems seamlessly.

Automated Application Generation

Upon finalizing their data models and business processes, users can rely on AppMaster to generate fully functional applications automatically. This simplifies the software development process and eliminates technical debt by regenerating applications from scratch whenever blueprint changes are made. As a result, companies can benefit from faster development cycles, reduced costs, and increased flexibility.

AppMaster supports multiple languages and frameworks, allowing generated applications to work seamlessly with various technologies. Backend applications are generated using Go (Golang), web applications use Vue3 framework and JS/TS, while mobile applications are built on Kotlin and Jetpack Compose for Android and SwiftUI for iOS. Moreover, generated applications are compatible with Postgresql-compatible databases as their primary database.

Conclusion

Data models are vital in developing and managing efficient and maintainable database management systems. Understanding the various types of data models, their applications, and key principles helps software developers and architects make informed decisions when designing and implementing database systems.

With its powerful no-code solution, the AppMaster platform empowers users to create comprehensive data models and applications. The visual database schema designer, business process designer, and automated application generation features offered by AppMaster make creating reliable and maintainable database solutions quicker and more accessible.

As the tech industry evolves, tools like AppMaster's no-code platform become increasingly valuable for developing scalable and efficient data models and the software solutions that rely on them.

What is a data model in DBMS?

A data model is a structural representation of the data elements, their relationships, and constraints within a database management system (DBMS). It assists in organizing, storing, and managing large amounts of data.

What is the network data model?

The network data model is a flexible data model that allows multiple relationships between entities. Each node in the network model can have multiple parent and child nodes, making it ideal for many-to-many relationships.

What is the entity-relationship model?

The entity-relationship model (ER model) is a conceptual data model that represents entities and their relationships. It is commonly used in database design and is visually depicted using an ER diagram.

Why are data models important in DBMS?

Data models play a crucial role in DBMS, as they provide a structural framework for designing databases, establishing data consistency, and enabling efficient data storage, retrieval, and management.

What are the principles of data modeling?

The principles of data modeling include clarity, simplicity, scalability, consistency, and flexibility. These principles help to create effective and maintainable data models.

What is the hierarchical data model?

The hierarchical data model represents data in a tree-like structure, with each node having one parent and multiple children. It was the first data model used in DBMS and is best suited for one-to-many relationships.

What is the relational data model?

The relational data model is a database model based on the concept of relations, represented as tables. It enables easy data manipulation and retrieval using SQL and is the most widely used data model.

How can AppMaster help in creating data models?

AppMaster platform offers a visual data model creation tool as part of its no-code solution for creating backend, web, and mobile applications. Users can easily design database schema, business logic, and more using the platform's intuitive interface.

What is the object-oriented data model?

The object-oriented data model integrates database and programming concepts, representing data as objects with attributes and methods. It supports inheritance, encapsulation, and polymorphism.

What are the types of data models in DBMS?

The main types of data models are hierarchical, network, relational, entity-relationship (ER), and object-oriented models.
